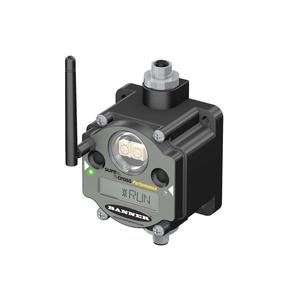

Banner DX80N9X6S-P6 Industrial Wireless
The Banner DX80N9X6S-P6 Industrial Wireless offers a DC power, 10-30 V dc power supply, and IP67 rating. Manufactured by Banner under the Banner Industrial Wireless category, this model belongs to the DX Series.
| Power Supply | 10-30 V dc |
| Power | DC |
| NEMA / UL Type Rating | NEMA 4X |
Banner DX80N9X6S-P6 Industrial Wireless β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Enclosed Terminals |
| IP Rating | IP67 |
| NEMA / UL Type Rating | NEMA 4X |
| Power | DC |
| Input Output | Serial |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Feature: Quick Disconnect | Yes |
| Device Type | Node |
| Power Supply | 10-30 V dc |
| Application: Ultrasonic | Yes |
| Input Details | 1 Wire Serial interface |
| Max Temp Operating Conditions (Β°C) | 80 |
| LCD Display | Yes |
| Min Temp Operating Conditions (Β°C) | -20 |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Star Topology | Yes |
| Tree Topology | No |
| Application: Relative Humidity Input | Yes |
| Application: Temperature Input | Yes |
| Application: Vibration Sensor Input | Yes |
| Application: Tank Level | Yes |
| Wireless | Yes |
| Wireless Radio Frequency | 900 MHz |
| 1-wire Serial Interface | Yes |
| Cert: Korea | Yes |
| Cert: Canada | Yes |
| Cert: Thailand | Yes |
| Min Operating Temperature ( Β°C) | -20 |
| Max Operating Temperature ( Β°C) | 80 |
| Cert: Australia/New Zealand | Yes |
