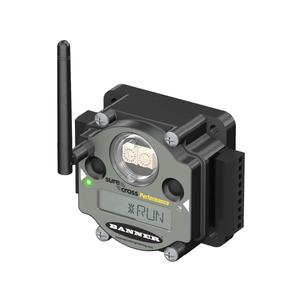

Banner DX80N9X6S-P2C Industrial Wireless
The Banner DX80N9X6S-P2C Industrial Wireless offers a DC power, 10-30 V dc power supply, and IP20 rating. Manufactured by Banner under the Banner Industrial Wireless category, this model belongs to the DX Series.
| Power Supply | 10-30 V dc |
| Power | DC |
| NEMA / UL Type Rating | NEMA 4X |
Banner DX80N9X6S-P2C Industrial Wireless β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | External Terminals |
| IP Rating | IP20 |
| NEMA / UL Type Rating | NEMA 4X |
| Power | DC |
| Input Output | Analog & Discrete |
| Device Type | Node |
| Power Supply | 10-30 V dc |
| Input Details | 4 Selectable Discrete, 2 0-20 mA |
| Max Temp Operating Conditions (Β°C) | 80 |
| Hazardous/Intrinsically Safe Classification | Class I, Division 2/Zone 2; ATEX Zone 2 |
| LCD Display | Yes |
| Min Temp Operating Conditions (Β°C) | -20 |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Star Topology | Yes |
| Tree Topology | No |
| Feature: Hazardous Area | Yes |
| Wireless | Yes |
| Wireless Radio Frequency | 900 MHz |
| Cert: Korea | Yes |
| Cert: Canada | Yes |
| Cert: Thailand | Yes |
| Min Operating Temperature ( Β°C) | -20 |
| Max Operating Temperature ( Β°C) | 80 |
| Analog Inputs | Yes |
| Analog Outputs | Yes |
| Discrete Inputs | Yes |
| Discrete Outputs | Yes |
| Output Details | 4 PNP Discrete, 2 0-20 mA analog |
| Cert: Australia/New Zealand | Yes |
