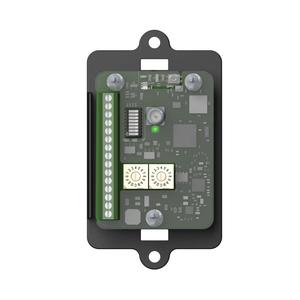

Banner DX80DR9M-HB2 Industrial Wireless
The Banner DX80DR9M-HB2 Industrial Wireless offers a DC power, 10-30 V dc power supply, and rating. Manufactured by Banner under the Banner Industrial Wireless category, this model belongs to the DX Series.
| Power Supply | 10-30 V dc |
| Power | DC |
| NEMA / UL Type Rating | NEMA 4X |
Banner DX80DR9M-HB2 Industrial Wireless – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Board Level |
| NEMA / UL Type Rating | NEMA 4X |
| Power | DC |
| Input Output | Analog & Discrete |
| Device Type | Multihop Data Radio |
| Modbus RTU | Yes |
| RS-485 | Yes |
| Power Supply | 10-30 V dc |
| Input Details | 2 Sinking Discrete,2 0-20mA analog |
| Max Temp Operating Conditions (°C) | 80 |
| Hazardous/Intrinsically Safe Classification | Class I, Division 2/Zone 2; ATEX Zone 2 |
| Min Temp Operating Conditions (°C) | -20 |
| Ships With Battery | No |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Star Topology | Yes |
| Tree Topology | Yes |
| Feature: Hazardous Area | Yes |
| Wireless | Yes |
| Wireless Radio Frequency | 900 MHz |
| Cert: Canada | Yes |
| Cert: Thailand | Yes |
| Min Operating Temperature ( °C) | -20 |
| Max Operating Temperature ( °C) | 80 |
| Analog Inputs | Yes |
| Analog Outputs | Yes |
| Discrete Inputs | Yes |
| Discrete Outputs | Yes |
| Output Details | 2 Sourcing Discrete, 2 0-20 mA Analog |
| Cert: Australia/New Zealand | Yes |
