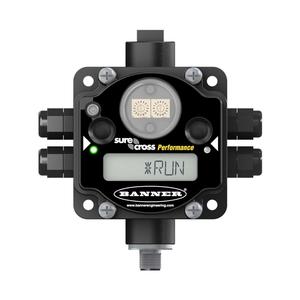

Banner DX80DR2M-H Industrial Wireless
The Banner DX80DR2M-H Industrial Wireless offers a Flex Power power, 10-30 V dc or 3.6-5.5 V dc low power option power supply, and IP67 rating. Manufactured by Banner under the Banner Industrial Wireless category, this model belongs to the DX Series.
| Power Supply | 10-30 V dc or 3.6-5.5 V dc low power option |
| Power | Flex Power |
| NEMA / UL Type Rating | NEMA 6 |
Banner DX80DR2M-H Industrial Wireless β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Enclosed Terminals |
| IP Rating | IP67 |
| NEMA / UL Type Rating | NEMA 6 |
| Power | Flex Power |
| Input Output | Serial |
| Device Type | Multihop Data Radio |
| Modbus RTU | Yes |
| RS-485 | Yes |
| Power Supply | 10-30 V dc or 3.6-5.5 V dc low power option |
| Max Temp Operating Conditions (Β°C) | 80 |
| Hazardous/Intrinsically Safe Classification | Class I, Division 2/Zone 2; ATEX Zone 2 |
| LCD Display | Yes |
| Min Temp Operating Conditions (Β°C) | -20 |
| Ships With Battery | No |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Star Topology | Yes |
| Tree Topology | Yes |
| Feature: Hazardous Area | Yes |
| Wireless | Yes |
| Wireless Radio Frequency | 2.4 GHz |
| Cert: China | Yes |
| Cert: Korea | Yes |
| Cert: Brazil | Yes |
| Cert: Canada | Yes |
| Cert: Singapore | Yes |
| Min Operating Temperature ( Β°C) | -20 |
| Max Operating Temperature ( Β°C) | 80 |
| RS-232 | Yes |
