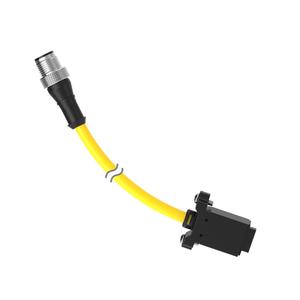

Banner DELSE-51D Cordset
The Banner DELSE-51D Cordset offers a Double Ended, LS-Custom connection, 60 V ac/75 V dc rating, and No Shield. Manufactured by Banner under the Banner Cordset category.
| Brand | Banner |
| Product Type | Cordsets |
| Model Number | DELSE-51D |
Banner DELSE-51D Cordset β Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | IP67 |
| Cable Jacket Color | Yellow |
| Cable Jacket Material | PVC |
| Coupling Nut Material | Nickel Plated Brass |
| Connector 1 Gender | Female |
| Connector 1 Orientation | Straight |
| Cordset Length (m) | 0.3 |
| Outside Cable Diameter (mm) | 5.9 |
| Connector 1 Number of Contacts | 12 |
| Number of Ends | Double Ended |
| Connector 2 Type | M12 |
| Connector 1 Type | LS-Custom |
| Voltage Rating (V) | 60 V ac/75 V dc |
| Minimum Temp. (Celsius) | -40 |
| Trunk Length (m) | No Trunk |
| Shield/No Shield | No Shield |
| Overmold Material and Color | PVC Black |
| Current Rating (A) | 2 |
| Maximum Temp. (Celsius) | 70 |
| Cordset Length Range (m) | Less than 2.00 |
| Connector 2 Number of Contacts | 5 |
| Connector 2 Gender | Male |
| Connector 2 Orientation | Straight |
| Connector 2 Key Code | A |
