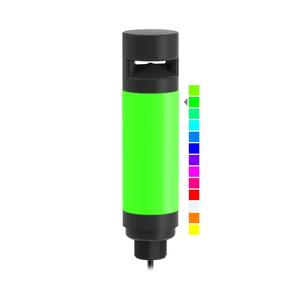

Bannerengineering CL50PRGB7A Tower Light
The Banner CL50PRGB7A Tower Light offers Base Mount - Tower housing style, 14 No. of Colors, M30 x 1.5 Mounting Method, and Cable connection. Manufactured by Banner under the Banner Tower Lights category, this model belongs to the TL Series.
| Housing Style | Base Mount - Tower |
| Supply Voltage | 12-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
Banner CL50PRGB7A Tower Light – Technical Specifications
| Specification | Value |
|---|---|
| Type | CL50 Pro Series 50 mm Programmable Column Lights |
| Housing Style | Base Mount - Tower |
| IP Rating | IP65 |
| NEMA / UL Type Rating | UL 4X |
| Cable Length (m) | 1.2 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Cable |
| Feature: Audible | Yes |
| Display | No |
| Indication | Yes |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number of Colors | 14 |
| Product Size (mm) | 50 |
| Color Technology | RGB Configurable |
| Color Option 1 | Red |
| Color Option 2 | Green |
| Color Option 3 | Blue |
| Color Option 4 | Yellow |
| Color Option 5 | White |
| Max Current Color (mA) | 255 |
| Wire Selectable Function | Multi-Function |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 12-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Input Response Time (ms) | 250 |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 57.0 |
| Environmental Rating | IP65 |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -20 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Audible Alarm Type | Continuous |
| Max Audible Intensity (db at 1m) | 93 |
| Audible Operating Frequency (kHz) | 3.1 |
| Max Current - Audible Alarm (mA) | 35 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Storage Temp (°C) | -40 to 70 |
| I/O Block Compatible | Yes |
| Lumens Color 1 | 29.1 |
| Color 1 - Wavelength/Color Temp/Coordinates | 620 nm |
| Lumens Color 2 | 52.2 |
| Color 2 - Wavelength/Color Temp/Coordinates | 522 nm |
| Lumens Color 3 | 11.6 |
| Color 3 - Wavelength/Color Temp/Coordinates | 466 nm |
| Lumens Color 4 | 75.9 |
| Color 4 - Wavelength/Color Temp/Coordinates | 576 nm |
| Lumens Color 5 | 79.4 |
| Color 5 - Wavelength/Color Temp/Coordinates | 5700K |
| Color Option 6 | Magenta |
| Lumens Color 6 | 36.7 |
| Color 6 - Wavelength/Color Temp/Coordinates | 0.370, 0.185 |
| Color Option 7 | Cyan |
| Lumens Color 7 | 57.9 |
| Color 7 - Wavelength/Color Temp/Coordinates | 493 nm |
| Pro-Editor Compatible (Discrete) | Yes |
