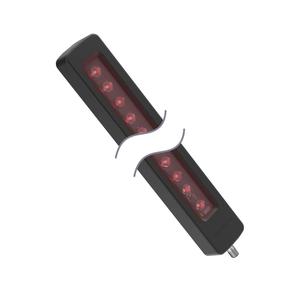

Banner BL60I340L14ASQ Vision Light
The Banner BL60I340L14ASQ Vision Light offers a type, 12-30 V dc supply voltage, and Integral QD connection. Manufactured by Banner under the Banner Vision Light category, this model belongs to the right light Series.
| Brand | Banner |
| Product Type | Vision Light |
| Model Number | BL60I340L14ASQ |
Banner BL60I340L14ASQ Vision Light – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Linear Strip |
| IP Rating | IP67, IP68, IP68g, IP69K |
| Power | DC |
| Primary Housing Material | Black E-coated Aluminum Housing |
| Connection | Integral QD |
| Feature: Audible | No |
| Display | No |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 1 |
| Product Size (mm) | 60 |
| Color Technology | Standard LED |
| Color Option 1 | Infrared |
| Animation Option 1 | Multiple |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 1600 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 12-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Physical Dimensions (LxWxH or DxH mm) | 381.4 x 60.9 x 31.3 |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Clear |
| Feature: Quick Disconnect | Yes |
| Feature: Washdown Rated | Yes |
| Storage Temp (°C) | -40 to 70 |
| Color 1 - Wavelength/Color Temp/Coordinates | 850 nm |
| Illumination | Yes |
| Dimming Option | PWM; 1-10V |
| Illuminated Length (LxWxH mm) | 254.6 |
| Color 1 - IR/UV Intensity (mW) | 2450 |
