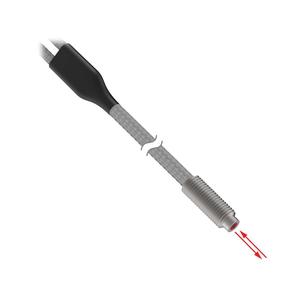

Banner BF23SMHF Fiber Optic Sensor
The Banner BF23SMHF Fiber Optic Sensor offers a Diffuse sensing mode, 25 bend radius, Glass fiber optic type, and Glass Fiber Sensors termination type. Manufactured by Banner under the Banner Fiber Optic Sensor category, this model belongs to the PIF46U Series.
| Brand | Banner |
| Product Type | Fiber Optic Sensor |
| Model Number | BF23SMHF |
Banner BF23SMHF Fiber Optic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Round |
| Quantity Included | 1 |
| Fiber Optic Type | Glass |
| Sensing Mode (General) | Diffuse |
| Sensing Mode (Detailed) | Reflective |
| Beam Exit | In-line |
| Sensing End Material (Specific) | Stainless Steel |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Fiber Sensing End Tip | Probe |
| Fiber Length (m) | 0.914 |
| Fiber Sensing End Size | 12.7 mm |
| Sensing End Segment 1 | Probe |
| Retractile | No |
| Flex Relief | No |
| Core Diameter (mm) | 3.2 |
| Minimum Bend Radius (mm) | 25 |
| Termination | Terminated |
| Max Temp ( °C) | 249 |
| Integrated Lens | No |
| Application: Liquid Level | No |
| Termination Type | Glass Fiber Sensors |
| Max Distance: DF-G3 (mm) | No Data |
| Fiber Sensing End Size - Mounting Area | 12.7 mm |
| Measured Max Distance (mm) | No Data |
| Max Distance: DF-G2 (mm) | No Data |
| Tariff Fiber Meters (fbm) | 3110.34 |
| Max Distance: DF-G1 (mm) | No Data |
