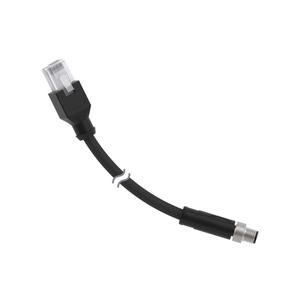

Banner BCD-M8M-RJ45-BK-8 Cordset
The Banner BCD-M8M-RJ45-BK-8 Cordset offers a Double Ended, M8 connection, 30 V ac/dc rating, and Shield - Tied to Coupling Nut. Manufactured by Banner under the Banner Cordset category.
| Brand | Banner |
| Product Type | Cordsets |
| Model Number | BCD-M8M-RJ45-BK-8 |
Banner BCD-M8M-RJ45-BK-8 Cordset – Technical Specifications
| Specification | Value |
|---|---|
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Coupling Nut Material | Nickel Plated Brass |
| Connector 1 Gender | Female |
| Connector 1 Orientation | Straight |
| Cordset Length (m) | 8 |
| Outside Cable Diameter (mm) | 5 |
| Connector 1 Number of Contacts | 4 |
| Number of Ends | Double Ended |
| Connector 2 Type | RJ45 |
| Connector 1 Type | M8 |
| Voltage Rating (V) | 30 V ac/dc |
| Minimum Temp. (Celsius) | -40 |
| Shield/No Shield | Shield - Tied to Coupling Nut |
| Overmold Material and Color | PUR Black |
| Current Rating (A) | 1 |
| Maximum Temp. (Celsius) | 70 |
| Cordset Length Range (m) | 5.00-9.99 |
| Connector 2 Number of Contacts | 8 |
| Connector 2 Gender | Female |
| Connector 2 Orientation | Straight |
