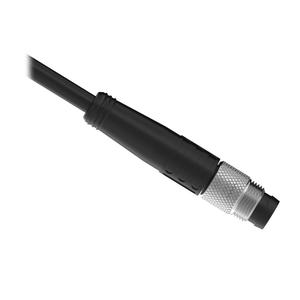

Banner BC-M8M4-24-0.5 Cordset
The Banner BC-M8M4-24-0.5 Cordset offers a Single Ended, M8 connection, 125 V ac/dc rating, and No Shield. Manufactured by Banner under the Banner Cordset category.
| Brand | Banner |
| Product Type | Cordsets |
| Model Number | BC-M8M4-24-0.5 |
Banner BC-M8M4-24-0.5 Cordset β Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | IP67 |
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Coupling Nut Material | Nickel Plated Brass |
| Connector 1 Gender | Male |
| Connector 1 Orientation | Straight |
| Cordset Length (m) | 0.5 |
| Outside Cable Diameter (mm) | 3.8 |
| Connector 1 Number of Contacts | 4 |
| Number of Ends | Single Ended |
| Connector 2 Type | Flying Leads |
| Connector 1 Type | M8 |
| Voltage Rating (V) | 125 V ac/dc |
| Minimum Temp. (Celsius) | -40 |
| Shield/No Shield | No Shield |
| Overmold Material and Color | PUR Black |
| Current Rating (A) | 1.5 |
| Maximum Temp. (Celsius) | 105 |
| Cordset Length Range (m) | Less than 2.00 |
