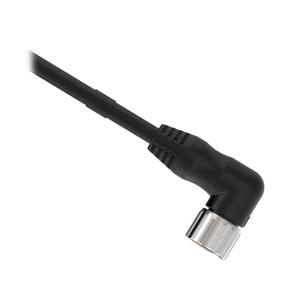

Banner BC-M23F19A-1822-2-SFP Cordset
The Banner BC-M23F19A-1822-2-SFP Cordset offers a Single Ended, M23 connection, 150 V ac/dc rating, and Shield - Tied to Coupling Nut. Manufactured by Banner under the Banner Cordset category.
| Brand | Banner |
| Product Type | Cordsets |
| Model Number | BC-M23F19A-1822-2-SFP |
Banner BC-M23F19A-1822-2-SFP Cordset β Technical Specifications
| Specification | Value |
|---|---|
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Coupling Nut Material | Nickel Plated Brass |
| Connector 1 Gender | Female |
| Connector 1 Orientation | Right Angle |
| Cordset Length (m) | 2 |
| Connector 1 Number of Contacts | 19 |
| Number of Ends | Single Ended |
| Connector 1 Type | M23 |
| Voltage Rating (V) | 150 V ac/dc |
| Minimum Temp. (Celsius) | -25 |
| Shield/No Shield | Shield - Tied to Coupling Nut |
| Overmold Material and Color | TPU Black |
| Current Rating (A) | 4 |
| Maximum Temp. (Celsius) | 80 |
| Cordset Length Range (m) | 2.00-4.99 |
