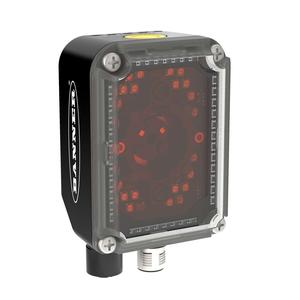

Banner ABR7106-MSE2 Barcode Reader

Name: Bannerengineering ABR7106-MSE2
Brand: Banner
SKU: ABR7106-MSE2
Rating: 4.1 (4 reviews)

The Banner ABR7106-MSE2 Barcode Reader offers a Imager BCR device type, 1280 x 1024 pixels image resolution, and 6 mm lens. Manufactured by Banner under the Banner Barcode Reader category, this model belongs to the ABR Series.

Datasheet

Brand	Banner
Product Type	Barcode Reader
Model Number	ABR7106-MSE2

Banner ABR7106-MSE2 Barcode Reader – Technical Specifications

Specification	Value
Primary Housing Material	Aluminum
PROFINET	Yes
IP Rating	IP67
Device Type	Imager BCR
Camera Housing Size (HxWxL mm)	43 x 54 x 95
Image Resolution	1280 x 1024 pixels
Lens (mm)	6
Light Color	Blue&Red
Code Type	1D, 2D
Imager Type	Grayscale
Feature: PC Interface	Yes
EtherNet/IP	Yes
Modbus/TCP	Yes
RS-232	Yes

Banner ABR7106-MSE2 Barcode Reader

Banner ABR7106-MSE2 Barcode Reader – Technical Specifications
