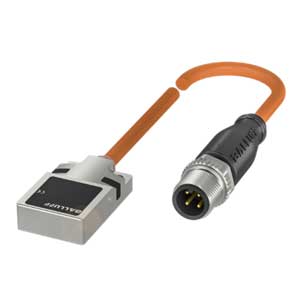

Balluff BES R01ZC-PSC70B-BZ00,2-GS04-108 Proximity Sensor
The Balluff BES R01ZC-PSC70B-BZ00,2-GS04-108 proximity sensor provides 7 mm sensing range with PNP NO output for industrial automation. Balluff BES R01ZC-PSC70B-BZ00,2-GS04-108 belongs to the BES Series and supports Balluff Proximity Sensors applications requiring 150 Hz switching frequency, 10...30 V DC operation, IP67 protection, and a 4-pin M12x1 connector for reliable metal detection.
| Brand | Balluff |
| Product Type | Proximity Sensor |
| Model Number | BES R01ZC-PSC70B-BZ00,2-GS04-108 |
Balluff BES R01ZC-PSC70B-BZ00,2-GS04-108 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Dimension | 32 x 20 x 8 mm |
| Installation | for flush mounting |
| Switching output / Interface | PNP normally open (NO) |
| Housing material | Zinc, Die casting, partly coated |
| Connection | Cable with connector, M12x1-Male, 4-pin, 0.20 m, TPU |
| Style Housing | 32x20x8 |
| Range | 7 mm |
| Switching frequency | 150 Hz |
| Material sensing surface | ceramic coated |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/ Conformity | CE UKCA cULus WEEE |
Balluff BES R01ZC-PSC70B-BZ00,2-GS04-108 Proximity Sensor is an inductive sensing device designed for non-contact metal detection in industrial automation systems. The sensor belongs to the BES Series and supports 7 mm sensing range, PNP Normally Open output, 10...30 V DC operating voltage, and IP67 environmental protection. Its compact 32 x 20 x 8 mm block housing with flush mounting configuration helps maintain stable sensing performance in welding lines and demanding industrial manufacturing environments.
Balluff Non-flush Proximity Sensors are commonly installed in conveyors, packaging systems, robotic welding cells, and automated assembly equipment requiring dependable metal object detection. The BES R01ZC-PSC70B-BZ00,2-GS04-108 supports stable switching response and reliable sensing performance in harsh industrial automation applications. Its die-cast zinc housing, ceramic-coated sensing surface, TPU cable connection, and immunity to weld spatters help maintain dependable operation in environments exposed to magnetic fields, metal residues, and moisture.
Balluff BES R01ZC-PSC70B-BZ00,2-GS04-108 Proximity Sensor combines compact block-style construction with reliable sensing performance for industrial automation applications. The sensor supports 7 mm sensing distance, PNP NO switching output, IP67 protection, and 10...30 V DC operation for accurate metal detection in continuous production systems. Balluff sensors are widely used across factory automation, welding applications, and assembly machinery where stable switching response, durable housing construction, and long-term sensing reliability are important for machine efficiency.
