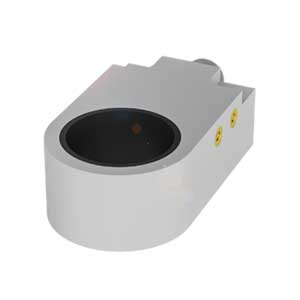

Balluff BES IKVS-025.23-G-S4 Proximity Sensor
The Balluff BES IKVS-025.23-G-S4 proximity sensor provides 25.1 mm pass-through diameter with PNP NO output for industrial automation. Balluff BES IKVS-025.23-G-S4 belongs to the BES Series and supports Balluff Proximity Sensors applications requiring 16 Hz switching frequency, 10 to 30 V DC operation, IP65 protection, and a 4-pin M12x1 connector for reliable metal part detection.
| Brand | Balluff |
| Product Type | Proximity Sensor |
| Model Number | BES IKVS-025.23-G-S4 |
Balluff BES IKVS-025.23-G-S4 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Dimension | 60 x 35 x 20 mm |
| Installation | - |
| Switching output / Interface | PNP normally open (NO) |
| Housing material | Plastic |
| Connection | Connector, M12x1-Male, 4-pin |
| Style Housing | block style |
| Range | 4 mm |
| Switching frequency | 16 Hz |
| Material sensing surface | Plastic |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP65 |
| Approval/ Conformity | CE, WEEE |
Balluff BES IKVS-025.23-G-S4 Proximity Sensor is an inductive ring and tube sensing device designed for non-contact metal part detection in industrial automation systems. The sensor belongs to the BES Series and supports 25.1 mm pass-through diameter, PNP Normally Open output, 10 to 30 V DC operating voltage, and 16 Hz switching frequency. Its compact 60 × 35 × 20 mm block-style housing helps maintain stable sensing performance in automated production and material handling environments.
Balluff Block Style Proximity Sensors are commonly installed in conveyors, packaging systems, assembly equipment, and automated feeding applications requiring dependable metal object detection. The BES IKVS-025.23-G-S4 supports stable switching response and reliable sensing performance for industrial automation processes. Its ring sensor structure allows metallic components to pass through the center opening, while the IP65-rated housing and M12 connector interface help maintain dependable operation in dust-prone and continuous production environments.
Balluff BES IKVS-025.23-G-S4 Proximity Sensor combines compact block-style construction with reliable sensing performance for industrial automation applications. The sensor supports 25.1 mm pass-through diameter, PNP NO switching output, IP65 protection, and 10 to 30 V DC operation for accurate metal part detection in continuous production systems. Balluff sensors are widely used across factory automation, assembly machinery, and packaging equipment where stable switching response, durable housing construction, and long-term sensing reliability are important for machine efficiency.
