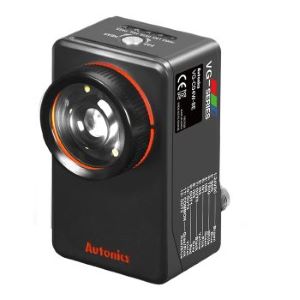

Autonics VG-C04G-8E Vision Sensor

Name: Autonics VG-C04G-8E
Brand: Autonics
SKU: VG-C04G-8E
Rating: 4.1 (4 reviews)

The Autonics VG-C04G-8E Vision Sensor offers 50mm sensing distance, 24VDC power supply, Rated input 24VDC input signal , Green light color , 500VAC~ 50/60Hz for 1 min.. Manufactured by Autonics under the Autonics Vision Sensor category, this model belongs to the Autonics VG Series.

Datasheet

Brand	Autonics
Product Type	Color Vision Sensors
Model Number	VG-C04G-8E

Autonics VG-C04G-8E Vision Sensor – Technical Specifications

Specification	Value
Min. sensing distance	50mm
Inspection_Work group	32
Trigger mode	External trigger, internal trigger, free-run trigger
Output_FTP transmission	Possible
Indicator	ᆞPower indicator(POWER), Ethernet connection indicator(LINK), pass indicator(PASS): Green LEDᆞData transmission indicator(DATA): Orange LEDᆞFailure indicator(FAIL): Red LED
Power supply	24VDC
Current consumption	1A
Input_Signal	Rated input 24VDC
Output_Signal	NPN or PNP open collector outputMax. 24VDC @(=) 50mA, residual voltage: max. 1.2VDC @(=)
Protection circuit	Output short over current protection circuit
Vibration	1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours
Shock	300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Environment_Ambient temperature	0 to 45℃, storage: -20 to 70℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Protection structure	IP67(IEC standard)
Material	Case: aluminium, lens cover/focus adjuster: polycarbonate, cable: polyurethane
Inspection_Inspection item	Alignment, brightness, contrast, area, edge, shape comparison, length, angle, diameter, object counting, color identification, area of color, object of color counting
Inspection_Simultaneous inspection	64
Inspection_Camera frame per second	-
Image snap_Image filter	Preprocessing, external filter(color filter, polarizing filter)
Image snap_Image element	1/3 inch color CMOS
Image snap_Resolution	752×480 pixel
Image snap_Camera frame per second	Max. 60fps
Image snap_Shutter	Global shutter
Image snap_Exposure time	20 to 10,000㎲
Light_ON/OFF method	Pulse
Light_Color	Green
Input_Type	External trigger input(TRIG), encoder input(IN2, IN3), work group change(IN0 to IN3)
Output_Type	Control output(OUT0 to OUT3): inspection completion, inspection result, external light trigger, alarm, camera busy
Insulation resistance	Over 20MΩ (at 500VDC megger)
Dielectric strength	500VAC~ 50/60Hz for 1 min.
Accessories	Assembly tool, bracket A, mounting screw: 2
Sold separately	Light, color filter, polarizing filter, power I/O cable, Ethernet cable, bracket B, protection cover
Weight	Approx. 415g(approx. 273g)

Get A Quote for 0.4M Color Vision Sensors VG-C04G-8E at the best price. Here are the brief Technical Specifications of VG-C04G-8E are minimum sensing distance of 50mm, these sensors support 32. They feature versatile trigger modes, including External trigger, internal trigger, free-run trigger, with FTP transmission Possible output capabilities for seamless data transfer. Operating on an 24VDC power supply, they have a current consumption of 1A, ensuring efficient performance. Built with a durable Case: aluminium, lens cover/focus adjuster: polycarbonate, cable: polyurethane, the sensors offer superior protection and longevity. They function reliably in ambient temperatures ranging from 0 to 45℃, storage: -20 to 70℃ and humidity levels of 35 to 85% RH, storage: 35 to 85% RH. With an IP67(IEC standard), these sensors are suitable for harsh environments. It's Time to get a Quote for your requirement of 0.4M Color Vision Sensors. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
