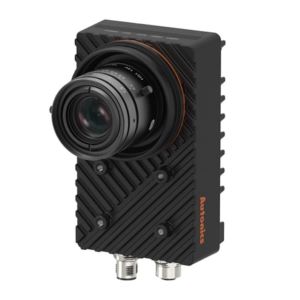

Autonics VC-M50T-CE Vision Sensor
The Autonics VC-M50T-CE Vision Sensor offers Connector type, 24VDC power supply, Rated input 24VDC input signal , 24VDC voltage , Max. 100mA current. Manufactured by Autonics under the Autonics Vision Sensor category, this model belongs to the Autonics VC Series.
| Brand | Autonics |
| Product Type | Vision Sensor |
| Model Number | VC-M50T-CE |
Autonics VC-M50T-CE Vision Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Image element | 1 inch mono CMOS |
| Resolution(Pixel) | 5 MP (2,560Γ2,048) |
| Frame per second | 16 fps |
| Bit Depth | 8 bit (256 gray level) |
| Shutter | Global shutter |
| Exposure time | 3 ΞΌs to 3 sec |
| Lens type | C-Mount |
| eMMC | 8 GB |
| DDR4 | 2 GB(LPDDR4), 512 MB(DDR4) |
| Inspection_Work group | 64 (simultaneous inspection: 32) |
| Trigger mode | Continuous, External Trigger, Manual, Ethernet, RS232 |
| Communication | Ethernet (TCP/IP & Modbus) RS232C |
| Output_FTP transmission | Possible |
| Indicator | Power, LINK, DATA, USER 1, USER 2 |
| Power supply | 24VDC |
| Current consumption | 1A |
| Input_Signal | Rated input 24VDC |
| Output_Signal | NPN-PNP open collector output setting (software) |
| HS Out 0 | Strobe OUT |
| HS Out 1 | Inspection complete, Inspection result output (PASS / FAIL), Alarm, Camera work |
| Load voltage | 24VDC |
| Load current | Max. 100mA |
| Residual voltage | β€2.5 VDC @(=) |
| Protection circuit | Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit |
| Vibration | 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours |
| Shock | 300m/sΒ² (approx. 30G) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature | 0 to 45β, storage: -30 to 80β |
| Environment_Ambient humidity | 0 to 95%RH, storage: 0 to 95%RH |
| Protection structure | IP67 (IEC standard When mounting waterproof lens cover) |
| Connection | Connector type |
| Connector type | Power I/O: M12 8-pin, Ethernet: M12 8-pin / RJ45 (cable tightening torque: 0.4 N m) |
| Material | Die-cast Aluminum Housing |
| Product Components | Ethernet connector Cap (screw plug - waterproof) Γ 1 (tightening torque: 0.4 N m) |
| Unit weight (packaged weight) | β 600 g (β 780 g) |
The Autonics VC-M50T-CE Vision Sensor is built with a 1-inch mono CMOS element delivering 5 MP resolution (2560Γ2048) at 16 fps. It supports a global shutter with exposure times from 3 ΞΌs to 3 seconds, ensuring clarity even in high-speed inspections. With 8 GB eMMC and 2 GB DDR4 memory, it enables reliable data handling during complex tasks. The unit supports up to 64 work groups with 32 simultaneous inspections, providing advanced image analysis in real time. Operating on a 24V DC Β±10% power supply with 1A current consumption, it ensures stable performance in demanding environments. Built with a die-cast aluminum housing and rated IP67 protection (with waterproof lens cover), the VC-M50T-CE resists dust, water, and vibration, making it highly durable for industrial use.
Offering multiple trigger modesβcontinuous, external, manual, Ethernet, and RS232βthe VC-M50T-CE Vision Sensor adapts to diverse automation needs. With NPN/PNP open collector outputs configurable via software, it supports seamless integration with existing control systems. FTP transmission capability allows smooth data transfer, while built-in protection circuits guard against reverse polarity and short-circuit damage. Operating in a wide temperature range of 0Β°C to 45Β°C and up to 95% RH, it maintains dependable performance even under challenging factory conditions.
Trusted across industries, the Autonics VC-M50T-CE 5M Monochrome Smart Camera is ideal for quality inspection, defect detection, positioning, and object verification in automotive, electronics, packaging, and material handling sectors. Maintenance engineers value its robust design and plug-and-play connectivity, while automation students and professionals appreciate its role in teaching practical machine vision concepts. With precise inspection capability, reliable memory resources, and long-term durability, this Vision Sensor supports productivity and quality assurance on the factory floor. For more details, explore the full Autonics Sensors & Controllers collection.
