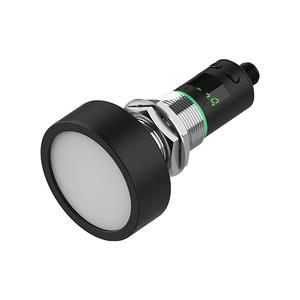

Autonics UTRCM30-8M-IL2 Ultrasonic Sensor
The Autonics UTRCM30-8M-IL2 Ultrasonic Sensor offers 600 to 8000 mm sensing distance, 500 Γ 500 mm sensing target, 12 - 30 VDC power supply, Push-pull output , M12 5-pin plug connector type. Manufactured by Autonics under the Autonics Ultrasonic Sensor category, this model belongs to the Autonics UTR Series.
| Brand | Autonics |
| Product Type | Ultrasonic Sensor |
| Model Number | UTRCM30-8M-IL2 |
Autonics UTRCM30-8M-IL2 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing distance | 600 to 8000 mm |
| Blind zone | 0 to 600 mm |
| Foreground suppression | 600 to 1800 mm |
| Max. setting zone | 8000 mm |
| Transducer frequency | 80 kHz |
| Switching frequency | β₯ 3 Hz |
| Response time | β€ 300 ms |
| Hysteresis | 100mm |
| Standard sensing target | 500 Γ 500 mm |
| Resolution | β₯ 0.180 mm |
| Power supply | 12 - 30 VDC |
| Current consumption | β€ 80 mA (no load) |
| Digital output | Push-pull |
| Protection circuit | Surge protection circuit, output short over current protection circuit, reverse polarity protection |
| Insulation resistance | β₯ 50 MΞ© (500 VDC@(=) megger) |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50 / 60 Hz for 1 min |
| Vibration | 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours |
| Shock | 500 m/sΒ² (β 50 G) in each X, Y, Z direction for 3 times |
| Ambient temperature | -25 to 70 β, storage: -40 to 85 β (no freezing or condensation) |
| Protection structure | IP67 (IEC standard) |
| Connection | Connector models |
| Connector type | M12 5-pin plug connector |
| Material | Case: mount - SUS316L, body - PC / transducer: ceramic |
| Unit weight (packaged weight) | β210g(β330g) |
Call us for Cylindrical Ultrasonic Sensors UTRCM30-8M-IL2 at the best rates. Technical Attributes of UTRCM30-8M-IL2 are sensing distance of 600 to 8000 mm, with a blind zone of 0 to 600 mm and foreground suppression 600 to 1800 mm. The maximum setting zone is 8000 mm, supported by an 80 kHz transducer frequency. Its fast response time is β€ 300 ms, with a switching frequency of β₯ 3 Hz and hysteresis of 100mm. Designed for accuracy, it detects standard sensing targets of 500 Γ 500 mm with a resolution of β₯ 0.180 mm. The power supply ranges from 12 - 30 VDC with β€ 80 mA (no load) current consumption. It offers a Push-pull digital output and uses an M12 5-pin plug connector. Unlock Exclusive Pricing with a Quote for your requirement of Cylindrical Ultrasonic Sensors. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
