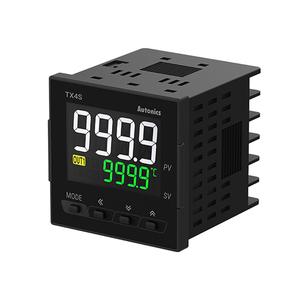

Autonics TX4S-B4S Temperature Controller
The Autonics TX4S-B4S Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, 4-digit 11-segment LCD, 50ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TX Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TX4S-B4S |
Autonics TX4S-B4S Temperature Controller – Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Control output | SSR drive(12VDC @(=)) [ON/OFF, phase, cycle] |
| Display method | 4-digit 11-segment LCD |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃/℉ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.5 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation (mark: @(INS), dielectric strength between primary circuit and secondary circuit: 3kV) |
| Protection structure | IP50(front panel) |
| Input specification | Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC)RTD: DPt100Ω, Cu50Ω |
| Option output | Alarm 1/2, RS485 comm. |
| Display accuracy_RTD | •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
| Display accuracy_Thermocouple | •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
| Hysteresis(adjustable sensitivity) | 1 to 100℃/℉(0.1 to 50.0℃/℉) variable |
| Weight | Approx. 146.1g(approx. 86.7g) |
Built with advanced process control capabilities, the Autonics TX4S-B4S delivers precise PID-based thermal regulation in fast-changing environments. It operates reliably on a wide 100–240VAC power supply and offers a fast sampling cycle of 50ms to ensure responsive adjustments in real time. Its SSR drive output (12VDC) supports ON/OFF, phase, and cycle control modes—making it ideal for use with solid-state relays in precision heating systems. The device offers five control methods—ON/OFF, P, PI, PD, PID—giving engineers flexibility to select control logic suited to their application needs.
The TX4S-B4S supports a wide input sensor range, including thermocouples (K, J, T, R, S, L) and RTDs (DPt100Ω, Cu50Ω), allowing seamless integration with standard industry sensors. The unit features a 4-digit 11-segment LCD display for easy monitoring and parameter configuration. Its display accuracy is within ±0.3% at room temperature, ensuring minimal deviation and high trust in setpoint control. Engineers can adjust proportional band, integral time, derivative time, and hysteresis settings to fine-tune performance. The controller is protected by double insulation (3kV) and features an IP50-rated front panel, enabling safe operation in dusty and electrically noisy environments.
Designed to operate in ambient temperatures ranging from -10°C to 50°C and humidity levels up to 85% RH, the TX4S-B4S performs dependably in India’s diverse industrial climates. The built-in RS485 communication and dual alarm outputs support integration into SCADA and PLC systems. With a compact footprint and a weight of just 146g, this controller fits easily into tight control panels without compromising functionality. Backed by Autonics’ trusted engineering, this model is a preferred choice for automation specialists and control system integrators.
