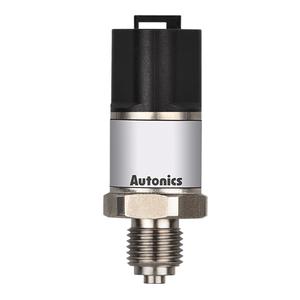

Autonics TPS30-G46AN4-00 Pressure Trasmitter
The Autonics TPS30-G46AN4-00 Pressure Transmitter offers DT04-3P connector type, 11-36VDC power supply, Max. Β±0.2% F.S. hysteresis , 0 to 1MPa pressure range , NPT1/4(DIN3852) pressure port. Manufactured by Autonics under the Autonics Pressure Transmitter category, this model belongs to the Autonics TPS30 Series.
| Brand | Autonics |
| Product Type | Pressure Transmitter |
| Model Number | TPS30-G46AN4-00 |
Autonics TPS30-G46AN4-00 Pressure Trasmitter β Technical Specifications
| Specification | Value |
|---|---|
| Measurement pressure | Gauge pressure |
| Measured materials | Liquid, gas, oil (lnappropriate to corrosion environment for stainless steel 316L) |
| Power supply | 11-36VDC |
| Linearity | Max. Β±0.2% F.S. |
| Hysteresis | Max. Β±0.2% F.S. |
| Accuracy | Max. Β±0.5% F.S. (including linearity, hysteresis, reproducibility) |
| Environment_Fluid temperature | -40 to 125β |
| Protection structure | IP67(IEC standard) |
| Connection type | DT04-3P connector type |
| Output specification | Current output(DC4-20mA) |
| Environment_Ambient temperature | -40 to 85β, storage: -40 to 125β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Stainless steel 316L (head part of head type: aluminium diecasting), connector: Polybutylene terephthalate G30,water-proof rubber: silicon |
| Pressure range | 0 to 1MPa |
| Pressure port | NPT1/4(DIN3852) |
| Weight | approx. 130g (approx. 50g) |
