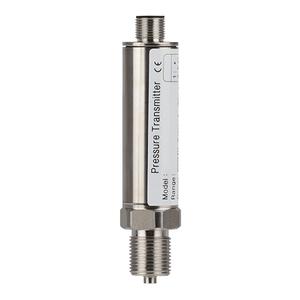

Autonics TPS20-G35F8-00 Pressure Trasmitter
The Autonics TPS20-G35F8-00 Pressure Transmitter offers Connector cable type, 15-35VDC power supply, ±0.3% F.S. hysteresis , 0 to 7kgf/cm² pressure range , R3/8(PF) pressure port. Manufactured by Autonics under the Autonics Pressure Transmitter category, this model belongs to the Autonics TPS20 Series.
| Brand | Autonics |
| Product Type | Pressure Transmitter |
| Model Number | TPS20-G35F8-00 |
Autonics TPS20-G35F8-00 Pressure Trasmitter – Technical Specifications
| Specification | Value |
|---|---|
| Measurement pressure | Gauge pressure |
| Connector | Connector cable type |
| Measured materials | Liquid, gas, oil (except corrosive environment of stainless steel type 316) |
| Power supply | 15-35VDC |
| Linearity | ±0.3％ F.S. (-10 to 50℃), ±0.5％F.S. (50 to 70℃) |
| Hysteresis | ±0.3% F.S. |
| Environment_Ambient temperature | -10 to 70℃, storage: -10 to 70℃ |
| Environment_Ambient humidity | 5 to 95% RH, storage: 5 to 95% RH |
| Material | Sealing, diaphragm, connection: stainless steel type 316, O-ring: fluoro rubber |
| Pressure range | 0 to 7kgf/cm² |
| Pressure port | R3/8(PF) |
| Weight | Approx. 350g (approx. 320g) (based on head type) |
