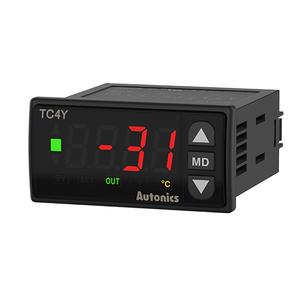

Autonics TC4Y-12R Temperature Controller
The Autonics TC4Y-12R Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 24VAC~ 50/60Hz, 24-48VDC power supply, Relay (250VAC~ 3A) or SSR drive (12VDC) [ON/OFF, phase, cycle], DIN W72×H36mm. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TC Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TC4Y-12R |
Autonics TC4Y-12R Temperature Controller – Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 24VAC~ 50/60Hz, 24-48VDC |
| Sampling cycle | 100ms |
| Control output | Relay (250VAC~ 3A) or SSR drive (12VDC) [ON/OFF, phase, cycle] |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃/℉ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.5 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV) |
| Display accuracy | - |
| Input specification | Thermocouple: K(CA), J(IC), L(IC)RTD: DPt100Ω, Cu50Ω |
| Option output | Alarm 1 |
| Display accuracy_RTD | •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit |
| Display accuracy_Thermocouple | •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit |
| Hysteresis(adjustable sensitivity) | 1 to 100℃/℉(0.1 to 50.0℃/℉) variable |
| Size | DIN W72×H36mm |
| Weight | Approx. 174g(approx. 85g) |
Autonics TC4Y-12R combines intelligent PID control with a compact form factor, making it a preferred choice for temperature controller needs in industrial panels. This model supports dual power inputs of 24VAC~ 50/60Hz or 24–48VDC, offering flexibility for both AC and DC-powered automation systems. The controller delivers fast response using a 100ms sampling cycle, and supports advanced control methods like ON/OFF, P, PI, PD, and PID. Output choices include relay (250VAC~ 3A) or SSR drive (12VDC), making it suitable for resistive or solid-state load applications. Engineers can fine-tune proportional band, integral time, and derivative time for optimal loop stability, while the 4-digit 7-segment LED display ensures process visibility. With compatibility for thermocouples (K, J, L) and RTDs (Pt100Ω, Cu50Ω), and a safety-rated 2kV dielectric strength, the TC4Y-12R is engineered for harsh electrical environments.
Maintenance teams benefit from its ease of installation, consistent accuracy, and long-term durability. Junior engineers and students find it intuitive for learning real-world temperature control, while seasoned professionals trust its stability across changing load conditions and ambient ranges of -10 to 50°C.
Whether you are upgrading existing systems or designing new industrial panels, the Autonics TC4Y-12R Single Display PID Temperature Controller delivers a perfect balance of precision, size, and multi-sensor compatibility. View complete specs and explore other Autonics models here.
