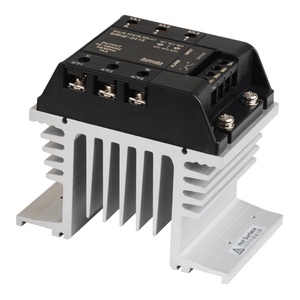

Autonics SRH2-2415 Solid State Relay
The Autonics SRH2-2415 Solid State Relay offers 2-Phase control, Panel, DIN rail Mounting type, 24VAC~ input voltage, 48-480VAC~ load voltage. Manufactured by Autonics under the Autonics Solid State Relay category, this model belongs to the Autonics SR Series.
| Brand | Autonics |
| Product Type | Solid State Relay |
| Model Number | SRH2-2415 |
Autonics SRH2-2415 Solid State Relay β Technical Specifications
| Specification | Value |
|---|---|
| Control phase | 2-Phase |
| Heatsink | Heatsink |
| Mounting type | Panel, DIN rail |
| Rated input voltage | 24VAC~ |
| Rated load voltage | 48-480VAC~ |
| Dielectric strength | 4,000VAC~ |
| Rated load current | 15A |
| Function | Zero cross turn-on |
| Environment_Ambient temperature | -30 to 80β(in case of the rated input voltage 90-240VAC~: -30 to 70β), Storage: -30 to 100β( The rated load current capacity is different depending on ambient temperature. Refer to 'β£ SSR Derating Curve'.) |
| Environment_Ambient humidity | 45 to 85% RH, storage: 45 to 85% RH |
| Weight | approx. 896g(approx. 686g) |
Mail Us for your needs in Autonics 2-Phase SSR Integrated Heatsink Type SRH2-2415 with budget-friendly prices. The Main Technical Parameters of SRH2-2415 include 2-Phase Control Relay with superior performance and durability. Designed for Panel, DIN rail mounting, this relay ensures easy installation in various industrial applications. It operates on a rated input voltage of 24VAC~, providing reliable control for automation systems. The rated load voltage of 48-480VAC~ makes it suitable for diverse electrical loads. Featuring a dielectric strength of 4,000VAC~, it guarantees high insulation performance, ensuring operational safety. The rated load current of 15A supports heavy-duty applications, offering efficient power handling. Equipped with a Zero cross turn-on function, it enhances switching stability, reducing electrical noise and extending the relayβs lifespan. Built for rugged environments, it operates reliably in ambient humidity levels of 45 to 85% RH, storage: 45 to 85% RH, ensuring consistent performance. With a weight of approximately approx. 896g(approx. 686g), it is compact yet robust. Customize Your Experience with a Quote for your requirement of 2-Phase SSR Integrated Heatsink Type. Experience the difference with our competitive pricing and superior support over other Suppliers.
