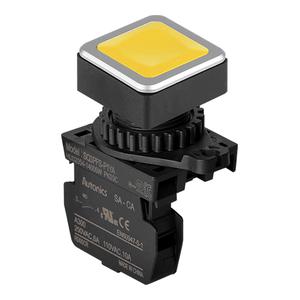

Autonics SQ3PFS-P1YAM - 30 mm Push Button Switches
Autonics 30 mm Push Button Switches SQ3PFS-P1YAM Technical Specifications
| Brand | Autonics |
| Product Type | Control Switches |
| Product | SQ3PFS-P1YAM |
Autonics 30 mm Push Button Switches SQ3PFS-P1YAM Technical Specifications
| Specification | Value |
|---|---|
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
| Button type | Flush |
| Illuminated | Non-illuminated |
| Letter marking | None(no printing) |
| Color | Yellow |
| Contact block | A contact: 1 |
| Contact block type | Modular type |
| Environment_Ambient temperature | -15 to 55โ, storage: -25 to 65โ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP52 |
| Weight_Mounting hole_โก30 | Approx. 22g |
| Weight_Housing | Approx. 7g |
| Weight_Contact block_Modular type A/B contact | Approx. 10g |
