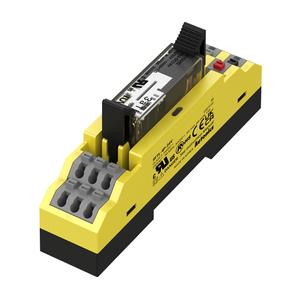

Autonics SFTL-4P-24V-2A2B Safety I/O Terminal Block
The Autonics SFTL-4P-24V-2A2B Safety I/O Terminal Block offers 24VDC voltage, 250 VAC~ 50/60 Hz, 30 VDC load voltage, 6A current, Screwless terminal type. Manufactured by Autonics under the Autonics Safety I/O Terminal Block category, this model belongs to the Autonics SFTL Series.
| Brand | Autonics |
| Product Type | Safety I/O Terminal Block |
| Model Number | SFTL-4P-24V-2A2B |
Autonics SFTL-4P-24V-2A2B Safety I/O Terminal Block β Technical Specifications
| Specification | Value |
|---|---|
| Number of pole | 4 |
| Applied relay | SFS2-DC24V: 2A2B, SFS3-DC24V: 3A1B |
| Rated voltage | 24VDC |
| Rated load voltage | 250 VAC~ 50/60 Hz, 30 VDC |
| Continuous current | 6A |
| Indicator | Operation indicator: green |
| Terminal type | Screwless |
| Insulation resistance | β₯ 1,000 MΞ© (500VDC@(=) megger) |
| Dielectric strength_Between coil-contacts | 4,000 VAC~ 50/60 Hz for 1 minute |
| Dielectric strength_Between different poles contact | 2,500 VAC~ 50/60 Hz for 1 minute |
| Dielectric strength_Between same contacts | 2,500 VAC~ 50/60 Hz for 1 minute |
| Vibration | 0.75 mm amplitude at frequency 10 to 55 Hz in each X, Y, Z direction for 2 hours |
| Shock | 300 m/sΒ² (β 30 G) in each X, Y, Z direction for 3 times |
| Stripped wire length | 8 to 10 mm |
| Ambient temperature | -25 to 70 β, storage: -30 to 80 β (no freezing or condensation) |
| Ambient humidity | 25 to 85 % RH, storage: 25 to 85 % RH (no freezing or condensation) |
| Protection structure | IP20(IEC standard) |
| Material | CASE, BASE: PC Terminal: PA66, COPPER, STAINLESS STEEL |
| Unit weight (packaged weight) | β 39.8 g (β 88 g) |
