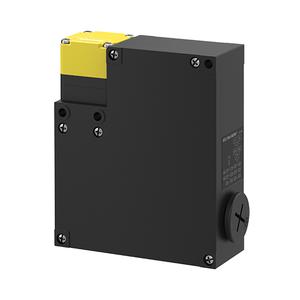

Autonics SFDL2-S6B-BG1/2-T - Safety Flat Type Door Lock Switch

Autonics Safety Flat Type Door Lock Switch SFDL2-S6B-BG1/2-T Technical Specifications

SpecValue
BrandAutonics
Product TypeSafety Flat Type Door Lock Switch
ProductSFDL2-S6B-BG1/2-T

Autonics Safety Flat Type Door Lock Switch SFDL2-S6B-BG1/2-T Technical Specifications

SpecificationValue
Directing opening forceMin. 80N
Directing opening distanceMin. 10mm
Locking pullout strengthMin. 1,300N
Operating speed0.05 to 1m/s
Operating frequencyMax. 20/min
Life cycle_MechanicalMin. 1,000,000 operations (20/min)
IndicatorSolenoid status or contact status (orange, depending on connection)
Vibration_Malfunction0.35mm single amplitude at frequency of 10 to 55Hzin each X,Y,Z direction for 10 min
Shock1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times
Shock_Malfunction80m/s² (approx. 8G) in each X, Y, Z direction for 3 times
Environment_Ambient temperature-10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
Protection structureIP67(IEC standerd, except head)
MaterialHead: zinc or PA, case: PA
Rated load voltage & currentResistive load: 6 A/250 VAC~, 0.6 A/250 VDC@(=)Inductive load (IEC): AC-15 3 A/240 VAC~, DC-13 0.27 A/250 VDC@(=)Inductive load (UL): A300, Q300
Dielectric strength_Between the terminals of same polarity2.5kV
Dielectric strength_Between the terminals of different polarity4 kV
Dielectric strength_Between each terminal and non-live part6 kV
Insulation resistance100MΩ or more (500VDC megger basis)
Contact resistance≤ 100 mΩ
Life cycle_Electrical≥ 100,000 operations (250 VAC~/6 A)
Conditional short circuit current100A
Rated voltage24 VDC@(=), class 2
Current consumptionSupplying power: 0.26ANormal: max. 0.2A (approx. 3 seconds after supplying power)
Insulation classClass E
Weight≈ 400 g (≈ 490 g)
