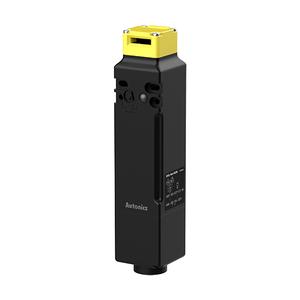

Autonics SFDL-S6C-M20K Safety Door Switches
The Autonics SFDL-S6C-M20K Safety Door Switch offers Min. 80N opening force, Min. 10mm, 0.05 to 1m/s, Max. 20/min Operating frequency. Manufactured by Autonics under the Autonics Safety Door Switch category, this model belongs to the Autonics SFDL Series.
| Brand | Autonics |
| Product Type | Safety Door Lock Switches |
| Model Number | SFDL-S6C-M20K |
Autonics SFDL-S6C-M20K Safety Door Switches β Technical Specifications
| Specification | Value |
|---|---|
| Directing opening force | Min. 80N |
| Directing opening distance | Min. 10mm |
| Locking pullout strength | Min. 1,300N |
| Operating speed | 0.05 to 1m/s |
| Operating frequency | Max. 20/min |
| Life cycle_Mechanical | Min. 1,000,000 operations (20/min) |
| Vibration_Malfunction | 0.35mm single amplitude at frequency of 10 to 55Hzin each X,Y,Z direction for 10 min |
| Shock | 1,000m/sΒ² (approx. 100G) in each X, Y, Z direction for 3 times |
| Shock_Malfunction | 1,000m/sΒ² (approx. 100G) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature | -10 to 55β, storage: -25 to 65β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67(IEC standerd, except head) |
| Material | Head: zinc, case: polyamide 66, operation key: stainless steel 304 |
| Applicable cable | AWG22 |
| Sold separately | Operation key |
| Rated load voltage & current | Resistive load : 1A/120VAC~, 0.22A/125VDC@(=)Inductive load : AC-15 1A/120VAC~, DC-13 0.22A/125VDC@(=) |
| Dielectric strength_Between the terminals of same polarity | 1.5kV |
| Dielectric strength_Between the terminals of different polarity | 1.5kV |
| Dielectric strength_Between each terminal and non-live part | 2.5kV |
| Insulation resistance | 100M⦠or more (500VDC megger basis) |
| Contact resistance | Max. 200mΞ© |
| Life cycle_Electrical | Min. 100,000 operations (125VAC~/1A) |
| Conditional short circuit current | 100A |
| Rated voltage | 24VDC@(=) |
| Current consumption | Supplying power: 0.26ANormal: max. 0.2A (approx. 3 seconds after supplying power) |
| Insulation class | Class E |
| Weight | Approx. 440g(approx. 375g) |
