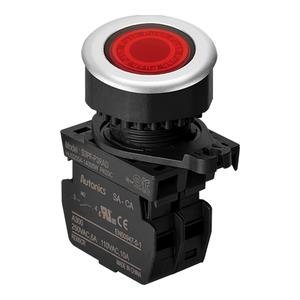

Autonics S3PF-P3RAD - 30 mm Push Button Switches
Autonics 30 mm Push Button Switches S3PF-P3RAD Technical Specifications
| Brand | Autonics |
| Product Type | Control Switches |
| Product | S3PF-P3RAD |
Autonics 30 mm Push Button Switches S3PF-P3RAD Technical Specifications
| Specification | Value |
|---|---|
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
| LED block_Power supply | 12-24VAC~ 50/60Hz, 12-24VDC @(=) |
| LED block_Current consumption | Max. 20mA |
| Button type | Flush |
| Illuminated | Illuminated |
| Letter marking | Marking(Push) |
| Color | Red |
| Contact block | A contact: 1 |
| Contact block type | Singular type |
| Environment_Ambient temperature | -15 to 55โ, storage: -25 to 65โ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP52 |
| Weight_Housing | Approx. 7g |
| Weight_Contact block_Singular type A/B contact | Approx. 11g |
| Weight_LED block_AC/DC voltage type | Approx. 11g |
| Weight_Mounting hole_ร30 | Approx. 21.5g |
