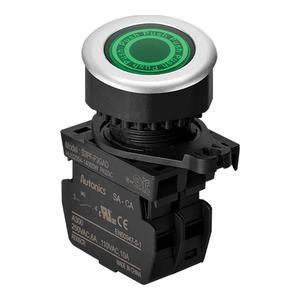

Autonics S3PF-P3GAD - 30 mm Push Button Switches
Autonics S3PF-P3GAD Control Switches are illuminated 30 mm push button solutions designed for automation panels, ensuring reliable operation, durability, and safety.
| Brand | Autonics |
| Product Type | Control Switches |
| Product | S3PF-P3GAD |
Autonics 30 mm Push Button Switches S3PF-P3GAD Technical Specifications
| Specification | Value |
|---|---|
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
| LED block_Power supply | 12-24VAC~ 50/60Hz, 12-24VDC @(=) |
| LED block_Current consumption | Max. 20mA |
| Button type | Flush |
| Illuminated | Illuminated |
| Letter marking | Marking(Push) |
| Color | Green |
| Contact block | A contact: 1 |
| Contact block type | Singular type |
| Environment_Ambient temperature | -15 to 55β, storage: -25 to 65β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP52 |
| Weight_Housing | Approx. 7g |
| Weight_Contact block_Singular type A/B contact | Approx. 11g |
| Weight_LED block_AC/DC voltage type | Approx. 11g |
| Weight_Mounting hole_Γ30 | Approx. 21.5g |
Autonics S3PF-P3GAD Control Switches are part of the trusted S3PF Series, engineered as illuminated 30 mm Push Button Switches for automation and machinery. The model operates at 110VAC/10A and 250VAC/6A, offering dependable current handling. Its LED block supports 12β24VAC 50/60Hz or 12β24VDC, with maximum current consumption of only 20mA for energy efficiency. Featuring a flush green button with clear push marking, and singular A contact block, the design ensures stable input feedback. Rated with IP52 protection, it delivers reliable performance in industrial panels under dust and humidity, with a tolerance from -15Β°C to 55Β°C and 35β85% relative humidity. Weighing approximately 21.5 g including the LED block and housing, installation through the Γ30 mm mounting hole is quick and secure, reducing downtime for engineers.
The S3PF-P3GAD Autonics Control Switch is widely applied in conveyors, machine panels, packaging lines, and assembly systems where operators need fast and reliable push button input. Its illuminated design improves visibility in low-light areas, helping maintenance staff and operators avoid errors. The modular construction of the S3PF Series allows engineers to integrate the model quickly into existing panels, supporting efficient replacements and upgrades. With rugged build quality and dependable electrical characteristics, it is a preferred option for industries requiring safe, responsive operator control switches.
Procurement teams and engineers often reference this product as S3PF-P3GAD, Autonics S3PF P3GAD, or S3PF P3GAD Autonics Control Switch when sourcing. These 30 mm Push Button Switches are stocked by wholesalers, dealers, and distributors, making them accessible for project rollouts across facilities. Designed to balance safety, clarity, and long service life, the S3PF Autonics model strengthens operator confidence and process reliability. Trusted across automation environments, the Autonics S3PF-P3GAD Control Switches continue to deliver consistent performance in critical industrial applications.
