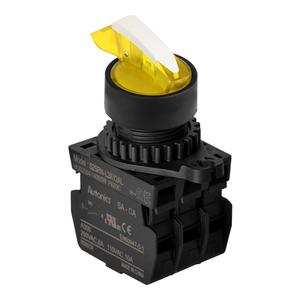

Autonics S2SRN-L6Y2AL - 22/25 mm Selector Switches
Technical Specifications of Autonics 22/25 mm Selector Switches S2SRN-L6Y2AL:
| Brand | Autonics |
| Product Type | Control Switches |
| Product | S2SRN-L6Y2AL |
Autonics 22/25 mm Selector Switches S2SRN-L6Y2AL Technical Specifications
| Specification | Value |
|---|---|
| Mechanical characteristics_Operation angle | Left 60ΒΊ , Right 60ΒΊ |
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
| LED block_Power supply | 110-220VAC~ 50/60Hz |
| LED block_Current consumption | Max. 20mA |
| Contact block | A contact: 1, B contact: 1 |
| Contact block type | Singular type |
| Operation type | Long lever 3-position, spring return two-way |
| Color | Yellow |
| Environment_Ambient temperature | -15 to 55β, storage: -25 to 65β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP52 |
| Weight_Contact block_Singular type A/B contact | Approx. 11g |
| Weight_LED block_AC/DC voltage type | Approx. 12g |
| Weight_LED block_AC voltage type | Approx. 12g |
| Weight_Mounting hole_Γ22/25 | Approx. 16g |
| Weight_Housing | Approx. 7g |
