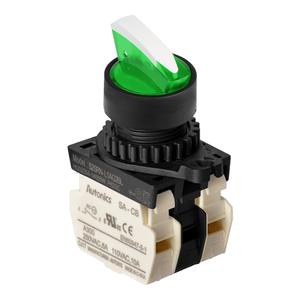

Autonics S2SRN-L5KG2BLM - 22/25 mm Selector Switches
Technical Specifications of Autonics 22/25 mm Selector Switches S2SRN-L5KG2BLM:
| Brand | Autonics |
| Product Type | Control Switches |
| Product | S2SRN-L5KG2BLM |
Autonics 22/25 mm Selector Switches S2SRN-L5KG2BLM Technical Specifications
| Specification | Value |
|---|---|
| Mechanical characteristics_Operation angle | Left 45º , Right 45º |
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
| LED block_Power supply | 110-220VAC~ 50/60Hz |
| LED block_Current consumption | Max. 20mA |
| Contact block | B contact: 2 |
| Contact block type | Modular type |
| Operation type | Short lever 3-position, spring return two-way |
| Color | Green |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP52 |
| Weight_Contact block_Modular type A/B contact | Approx. 10g |
| Weight_LED block_AC/DC voltage type | Approx. 12g |
| Weight_LED block_AC voltage type | Approx. 12g |
| Weight_Mounting hole_Ø22/25 | Approx. 16g |
| Weight_Housing | Approx. 7g |
