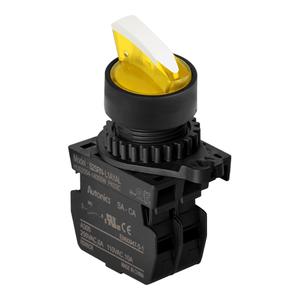

Autonics S2SRN-L3AYADM - 22/25 mm Selector Switches
Technical Specifications of Autonics 22/25 mm Selector Switches S2SRN-L3AYADM:
| Brand | Autonics |
| Product Type | Control Switches |
| Product | S2SRN-L3AYADM |
Autonics 22/25 mm Selector Switches S2SRN-L3AYADM Technical Specifications
| Specification | Value |
|---|---|
| Mechanical characteristics_Operation angle | Center 0º , Right 90º |
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
| LED block_Power supply | 12-24VAC~ 50/60Hz, 12-24VDC @(=) |
| LED block_Current consumption | Max. 20mA |
| Contact block | A contact: 1 |
| Contact block type | Modular type |
| Operation type | Short lever 2-position, maintained |
| Color | Yellow |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP52 |
| Weight_Contact block_Modular type A/B contact | Approx. 10g |
| Weight_Mounting hole_Ø22/25 | Approx. 16g |
| Weight_Housing | Approx. 7g |
