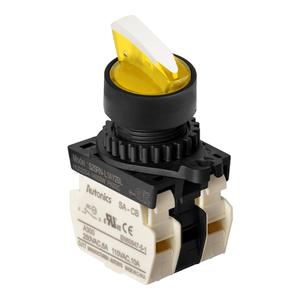

Autonics S2SRN-L1BY2BDM - 22/25 mm Selector Switches
Technical Specifications of Autonics 22/25 mm Selector Switches S2SRN-L1BY2BDM:
| Brand | Autonics |
| Product Type | Control Switches |
| Product | S2SRN-L1BY2BDM |
Autonics 22/25 mm Selector Switches S2SRN-L1BY2BDM Technical Specifications
| Specification | Value |
|---|---|
| Mechanical characteristics_Operation angle | Left 45ΒΊ , Right 15ΒΊ |
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
| LED block_Power supply | 12-24VAC~ 50/60Hz, 12-24VDC @(=) |
| LED block_Current consumption | Max. 20mA |
| Operation type | Short lever 2-position, spring return |
| Color | Yellow |
| Environment_Ambient temperature | -15 to 55β, storage: -25 to 65β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP52 |
| Weight_Contact block_Modular type A/B contact | Approx. 10g |
| Weight_Mounting hole_Γ22/25 | Approx. 16g |
| Weight_Housing | Approx. 7g |
