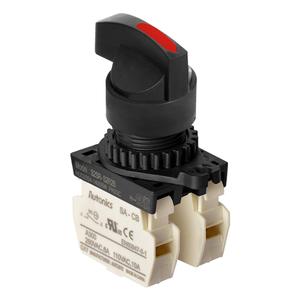

Autonics S2SR-S6KR2B - 22/25 mm Selector Switches
Technical Specifications of Autonics 22/25 mm Selector Switches S2SR-S6KR2B:
| Brand | Autonics |
| Product Type | Control Switches |
| Product | S2SR-S6KR2B |
Autonics 22/25 mm Selector Switches S2SR-S6KR2B Technical Specifications
| Specification | Value |
|---|---|
| Mechanical characteristics_Operation angle | Left 45º , Right 45º |
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
| Contact block | B contact: 2 |
| Contact block type | Singular type |
| Operation type | Long lever 3-position, spring return two-way |
| Color | White |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP52 |
| Weight_Contact block_Singular type A/B contact | Approx. 11g |
| Weight_Mounting hole_Ø22/25 | Approx. 19g |
| Weight_Housing | Approx. 7g |
