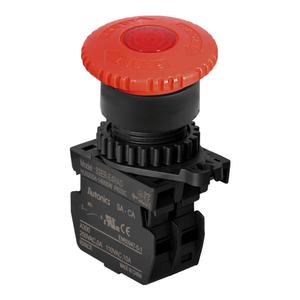

Autonics S2ER-E4RAD - 22/25 mm Emergency Switches
Technical Specifications of Autonics 22/25 mm Emergency Switches S2ER-E4RAD:
| Spec | Value |
|---|
| Brand | Autonics |
| Product Type | Control Switches |
| Product | S2ER-E4RAD |
Autonics 22/25 mm Emergency Switches S2ER-E4RAD Technical Specifications
| Specification | Value |
|---|
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
| LED block_Power supply | 12-24VAC~ 50/60Hz, 12-24VDC @(=) |
| LED block_Current consumption | Max. 20mA |
| Button type | D40(short head, illuminated) |
| Color | Red |
| Operation type | Push-lock, Turn-reset |
| Contact block | A contact: 1 |
| Contact block type | Singular type |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP52 |
| Weight_Housing | Approx. 7g |
| Weight_Contact block_Singular type A/B contact | Approx. 11g |
| Weight_LED block_AC/DC voltage type | Approx. 11g |
| Weight_Mounting hole_Ø22/25 | Approx. 22.5g |
