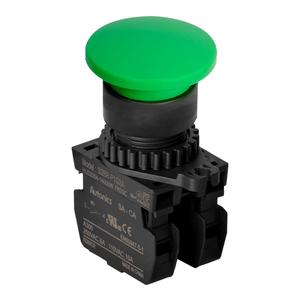

Autonics S2BR-P1G2A - 22/25mm Mushroom-Head Push Button Switch

Autonics 22/25mm Mushroom-Head Push Button Switch S2BR-P1G2A Technical Specifications

Autonics S2BR-P1G2A
BrandAutonics
Product TypeControl Switch
Model NumberS2BR-P1G2A

Autonics 22/25mm Mushroom-Head Push Button Switch S2BR-P1G2A Technical Specifications

SpecificationValue
Contact block_Electrical specification_Power voltage/current110VAC~/10A, 250VAC~/6A
Button typeExtended
ColorGreen
Contact blockA contact: 2
Contact block typeSingular type
Environment_Ambient temperature-15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
Protection structureIP52
Weight_HousingApprox. 7g
Weight_Contact block_Singular type A/B contactApprox. 11g
Weight_Mounting hole_Ø22/25Approx. 21g
