During technical comparisons, S16PRT-H4YC5 appears alongside Autonics Proximity Sensor, Autonics S2Srn Sakrab and Autonics Digital Counter so engineers assess signal types, ingress protection, and ambient tolerances accurately.

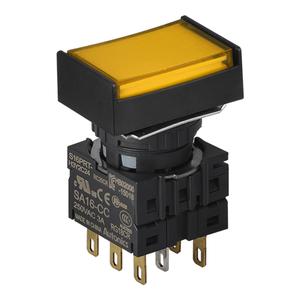

Autonics S16PRT-H4YC5 - 16 mm Push Button Switches
Autonics 16 mm Push Button Switches S16PRT-H4YC5 Technical Specifications
| Brand | Autonics |
| Product Type | Control Switches |
| Product | S16PRT-H4YC5 |
Autonics 16 mm Push Button Switches S16PRT-H4YC5 Technical Specifications
| Specification | Value |
|---|---|
| Contact block_Electrical specification_Power voltage/current | 250VAC~/3A |
| LED block_Power supply | 5VDC @(=) |
| Color | Yellow |
| Operation type | Maintained(illuminated) |
| Contact block | C contact: 1 |
| Environment_Ambient temperature | -15 to 55β, storage: -25 to 65β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP65(IEC standard) |
| Weight_Housing | Approx. 1.4g |
| Weight_Contact block | Approx. 1.6g |
| Weight_LED block | Approx. 1.9g |
| Weight_Body | Approx. 5.1g |
