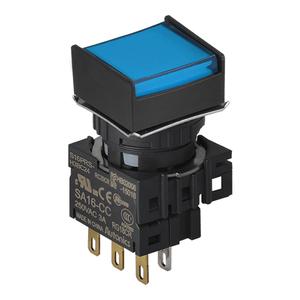

Autonics S16PRS-H3BC24 - 16 mm Push Button Switches
Autonics 16 mm Push Button Switches S16PRS-H3BC24 Technical Specifications
| Brand | Autonics |
| Product Type | Control Switches |
| Product | S16PRS-H3BC24 |
Autonics 16 mm Push Button Switches S16PRS-H3BC24 Technical Specifications
| Specification | Value |
|---|---|
| Contact block_Electrical specification_Power voltage/current | 250VAC~/3A |
| LED block_Power supply | 24VDC @(=) |
| Color | Blue |
| Operation type | Returned(illuminated) |
| Contact block | C contact: 1 |
| Environment_Ambient temperature | -15 to 55โ, storage: -25 to 65โ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP65(IEC standard) |
| Weight_Housing | Approx. 1.4g |
| Weight_Contact block | Approx. 1.6g |
| Weight_LED block | Approx. 1.9g |
| Weight_Body | Approx. 4.4g |
