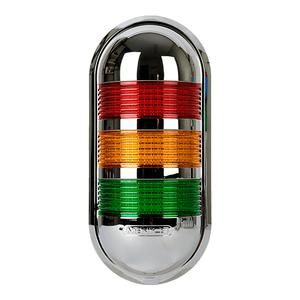

Autonics PWECZ-302-RYG Signal Light
The Autonics PWECZ-302-RYG Signal Light offers Steady, Flashing, Buzzerfunction, 24VAC/DC power supply, Red, Yellow, Green lens color, Lead wire connection type. Manufactured by Autonics under the Autonics Signal Lights category, this model belongs to the Autonics MS Series.
| Brand | Autonics |
| Product Type | Signal Lights |
| Product | PWECZ-302-RYG |
Autonics PWECZ-302-RYG Signal Light β Technical Specifications
| Specification | Value |
|---|---|
| Function | Steady, Flashing, Buzzer |
| Power supply | 24VAC/DC |
| Current consumption | 0.27A |
| LED color | Red, Yellow, Green |
| Lens color | Red, Yellow, Green |
| Dimension | W90ΓD25ΓH194mm |
| Buzzer volume | 80Β±5dB (at 1m) |
| Mounting direction | Wall mounting |
| Flashing rate | 80Β±5times/minute |
| Connection type | Lead wire connection |
| Cable specification | UL1007/22AWG |
| Storage ambient temperature | -20~70β |
| Ambient temperature | -20~40β |
| Ambient humidity | 45 to 85%RH |
| Insulation resistance | 100M⦠or more (500VDC megger basis) |
| Vibration | 0.75mm at 10~55Hz |
| Protection structure | IP52 |
