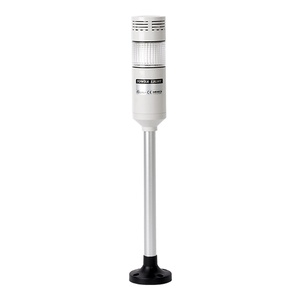

Autonics PTM-APB-1FF-RYG Tower Light
The Autonics PTM-APB-1FF-RYG Tower Light offers Steady, Buzzer(Fixed Sound)function, 90~240VAC power supply, 1color-Clear lens color, Lead wire connection type. Manufactured by Autonics under the Autonics Tower Light category, this model belongs to the Autonics PTM Series.
| Brand | Autonics |
| Product Type | Tower Lights |
| Model Number | PTM-APB-1FF-RYG |
Autonics PTM-APB-1FF-RYG Tower Light β Technical Specifications
| Specification | Value |
|---|---|
| Function | Steady, Buzzer(Fixed Sound) |
| Power supply | 90~240VAC |
| Current consumption | 0.022A |
| LED color | 3colors-Red, Yellow, Green |
| Lens color | 1color-Clear |
| Dimension | D56mm |
| Mounting direction | Upward only |
| Connection type | Lead wire connection |
| Cable specification | UL1007/22AWG |
| Ambient temperature | -15~40β |
| Storage ambient temperature | -20~70β |
| Ambient humidity | 45 to 85%RH |
| Insulation resistance | 100M⦠or more (500VDC megger basis) |
| Vibration | 0.75mm at 10~55Hz |
| Protection structure | IP50 |
| Buzzer volume | Fixed sound: 85Β±5dB (at 1m) |
