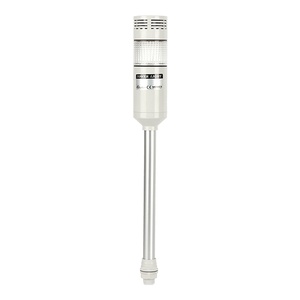

Autonics PTM-AMB-1FF-RYG Tower Light

The Autonics PTM-AMB-1FF-RYG Tower Light offers Steady, Buzzer(Fixed Sound)function, 90~240VAC power supply, 1color-Clear lens color, Lead wire connection type. Manufactured by Autonics under the Autonics Tower Light category, this model belongs to the Autonics PTM Series.

Brand	Autonics
Product Type	Tower Lights
Model Number	PTM-AMB-1FF-RYG

Autonics PTM-AMB-1FF-RYG Tower Light – Technical Specifications

Specification	Value
Function	Steady, Buzzer(Fixed Sound)
Power supply	90~240VAC
Current consumption	0.022A
LED color	3colors-Red, Yellow, Green
Lens color	1color-Clear
Dimension	D56mm
Mounting direction	Upward only
Connection type	Lead wire connection
Cable specification	UL1007/22AWG
Ambient temperature	-15~40℃
Storage ambient temperature	-20~70℃
Ambient humidity	45 to 85%RH
Insulation resistance	100MΩ or more (500VDC megger basis)
Vibration	0.75mm at 10~55Hz
Protection structure	IP50
Buzzer volume	Fixed sound: 85±5dB (at 1m)
