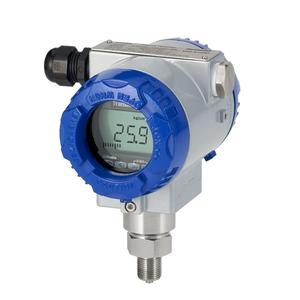

Autonics PTF30-GFNN-F8 - Display Type Pressure Transmitters
Technical Specifications of Autonics Display Type Pressure Transmitters PTF30-GFNN-F8:
| Spec | Value |
|---|
| Brand | Autonics |
| Product Type | Display Type Pressure Transmitters |
| Product | PTF30-GFNN-F8 |
Autonics Display Type Pressure Transmitters PTF30-GFNN-F8 Technical Specifications
| Specification | Value |
|---|
| Measurement pressure | Sealed gauge pressure |
| Power supply | 15-35VDC @(=) |
| Accuracy | ±0.2% of F.S. |
| Protection structure | IP67(IEC standard) |
| Output | DC4-20mA 2-wire Low-limit: 3.6mA(-2.5%), high-limit: 21.6mA(+10%) |
| Explosion class | Ex d IIC T6 |
| Mounting bracket | Without bracket |
| Environment_Ambient temperature | -20 to 70℃, storage: -20 to 80℃ |
| Environment_Ambient humidity | 0 to 85%RH |
| Material | Body: aluminum (AlDc.8S), cover O-Ring: buna N, diaphragm: stainless steel 316, connections: stainless steel 316 |
| Pressure range | -0.1 to 0.2MPa |
| Pressure port | G3/8(PF) |
| Weight | Approx. 1.2kg |
