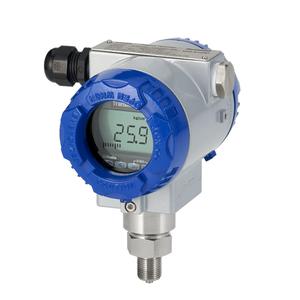

Autonics PTF30-A1NB-F8 Pressure Trasmitter
The Autonics PTF30-A1NB-F8 Pressure Transmitter offers Absolute pressure, 15-35VDC power supply, Β±0.2% of F.S. accuracy , 0 to 0.35kPa pressure range , G3/8(PF) pressure port. Manufactured by Autonics under the Autonics Pressure Transmitter category, this model belongs to the Autonics PTF30 Series.
| Brand | Autonics |
| Product Type | Pressure Transmitter |
| Model Number | PTF30-A1NB-F8 |
Autonics PTF30-A1NB-F8 Pressure Trasmitter β Technical Specifications
| Specification | Value |
|---|---|
| Measurement pressure | Absolute pressure |
| Power supply | 15-35VDC |
| Accuracy | Β±0.2% of F.S. |
| Protection structure | IP67(IEC standard) |
| Output | DC4-20mA 2-wire Low-limit: 3.6mA(-2.5%), high-limit: 21.6mA(+10%) |
| Explosion class | Ex d IIC T6 |
| Mounting bracket | With bracket |
| Environment_Ambient temperature | -20 to 70β, storage: -20 to 80β |
| Environment_Ambient humidity | 0 to 85%RH |
| Material | Body: aluminum (AlDc.8S), cover O-Ring: buna N, diaphragm: stainless steel 316, connections: stainless steel 316 |
| Pressure range | 0 to 0.35kPa |
| Pressure port | G3/8(PF) |
| Weight | Approx. 1.2kg |
