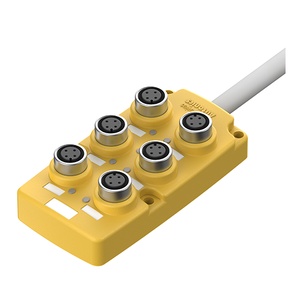

Autonics PT6-2D - M12 4-pin Connector Distribution Boxes
Technical Specifications of Autonics M12 4-pin Connector Distribution Boxes PT6-2D:
| Brand | Autonics |
| Product Type | Distribution Boxes |
| Product | PT6-2D |
Autonics M12 4-pin Connector Distribution Boxes PT6-2D Technical Specifications
| Specification | Value |
|---|---|
| Number of ports | 6-port |
| Output specification | 1-signal (DC 2-wire type) |
| Power supply | 12-24VDC @(=) |
| Rated current | 2A(per signal), 4A(per port), 10A(total) |
| Connection life cycle | Min. 200 operations |
| Number of M12 connector pins | 4-pin |
| Protection structure | IP67(waterproof cover), IP52(protection cover) |
| Connection method for external signal | Cable type |
| Leakage current | Max. 0.5mA |
| Cable length | 5m |
| Material | Case: PBT (G15%), General cable (gray):Polyvinyl chloride (PVC) |
| Environment_Ambient temperature | -25 to 75, storage: -30 to 80 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 720g (approx. 680g) |
