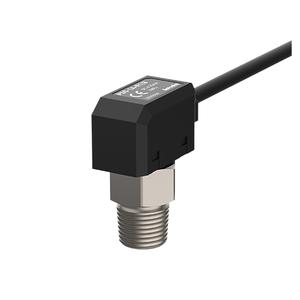

Autonics PSS-01A-R1/8 Pressure Sensor
The Autonics PSS-01A-R1/8 Pressure Sensor offers Standard pressure type, 0.0 to 100.0kPa pressure range, 12-24VDC power supply, Current output(DC4-20mA) output , R1/8 pressure port. Manufactured by Autonics under the Autonics Pressure Sensor category, this model belongs to the Autonics PSS Series.
| Brand | Autonics |
| Product Type | Pressure Sensor |
| Model Number | PSS-01A-R1/8 |
Autonics PSS-01A-R1/8 Pressure Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Applicable fluid | (Pneumatic type) Air, Non-corrosive gas |
| Pressure type | Standard pressure |
| Rated pressure range | 0.0 to 100.0kPa |
| Protection structure | IP40 (IEC Standards) |
| Pressure port | R1/8 |
| Power supply | 12-24VDC |
| Option output | Current output(DC4-20mA) |
| Environment_Ambient temperature | 0 to 50 β, storage: -10 to 60 β (no freezing or condensation) |
| Environment_Ambient humidity | 35 to 85%RH, Storage: 35 to 85%RH (no freezing or condensation) |
| Material | Front/Rear case: PBT, Pressure port: Nickel plated brass |
| Unit weight (packaged weight) | β 50 g (β 110 g) |
Obtain a Quote for Compact Non-Indicating Pressure Sensor PSS-01A-R1/8 at economical prices. Specifications Overview for PSS-01A-R1/8 reveals (Pneumatic type) Air, Non-corrosive gas. These sensors handle Standard pressure within a rated range of 0.0 to 100.0kPa, ensuring precise and reliable performance. Featuring an IP40 (IEC Standards) protection structure and an R1/8 pressure port, they are engineered for durability and ease of use. Operating with a power supply of 12-24VDC , the sensors provide Current output(DC4-20mA) for seamless integration into your system. Suitable for environments with ambient temperatures ranging from 0 to 50 β, storage: -10 to 60 β (no freezing or condensation) and ambient humidity levels of 35 to 85%RH, Storage: 35 to 85%RH (no freezing or condensation), these sensors maintain functionality without freezing or condensation. Take the First Step with a Quote for your requirement of Compact Non-Indicating Pressure Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
