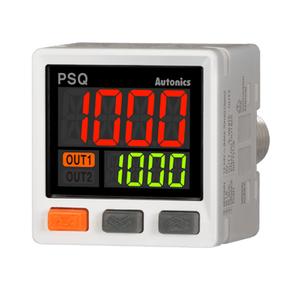

Autonics PSQ-C1CU-R1/8 Pressure Sensor
The Autonics PSQ-C1CU-R1/8 Pressure Sensor offers Compound pressure type, -100 to 1,000kPa pressure range, 12-24VDC power supply, Connector type(connector type cable: 2m) connection type , R1/8 pressure port. Manufactured by Autonics under the Autonics Pressure Sensor category, this model belongs to the Autonics PSQ Series.
| Brand | Autonics |
| Product Type | Pressure Sensor |
| Model Number | PSQ-C1CU-R1/8 |
Autonics PSQ-C1CU-R1/8 Pressure Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Applicable fluid | (Pneumatic type) Air, Non-corrosive gas |
| Pressure type | Compound pressure |
| Rated pressure range | -100 to 1,000kPa |
| Protection structure | IP40 |
| Pressure port | R1/8 |
| Power supply | 12-24VDC |
| Current consumption | Max. 50mA(current output: Max. 70mA) |
| Pressure port direction | Rear fitting |
| Connection type | Connector type(connector type cable: 2m) |
| Display pressure unit | MPa, kPa, kgf/cm², bar, psi, mmHg, inHg, mmH₂O |
| Option input/output | Select one at parameter settingVoltage(1-5VDC @(=)) outputCurrent(DC4-20mA) outputAUTO SHIFT, REMOTE ZERO, HOLD input |
| Control output_Hysteresis | Min. display interval |
| Control output_Repeat error | ±0.2% F.S. ±Min. display interval |
| Control output_Response time | Select one: 2.5ms, 5ms, 10ms, 25ms, 50ms, 100ms, 250ms, 500ms, 1,000ms, 5,000ms |
| Control output | Select one at parameter settingNPN open collector outputPNP open collector output |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 30 to 80% RH, storage: 30 to 80% RH |
| Material | Front case: polycarbonate, Rear case: Polybutylene terephthalate + glass 15%, Pressure port: stainless steel 303 |
| Weight | Approx. 165g(approx. 80g) |
Please speak to our Technical Engineer for Dual Digital Display Pressure Sensor PSQ-C1CU-R1/8 at attractive prices. Technical Specs Summary of PSQ-C1CU-R1/8 includes (Pneumatic type) Air, Non-corrosive gas. These sensors handle Compound pressure within a rated range of -100 to 1,000kPa, ensuring precise and reliable performance. Featuring an IP40 protection structure and an R1/8 pressure port, they are engineered for durability and ease of use. Operating with a power supply of 12-24VDC , the sensors provide Connection type Connector type(connector type cable: 2m) for seamless integration into your system. Suitable for environments with ambient temperatures ranging from -10 to 50℃, storage: -20 to 60℃ and ambient humidity levels of 30 to 80% RH, storage: 30 to 80% RH, these sensors maintain functionality without freezing or condensation. Match Your Needs with a Quote for your requirement of Dual Digital Display Pressure Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
