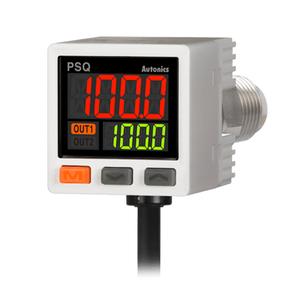

Autonics PSQ-BC01-9/16-18UNF Pressure Sensor
The Autonics PSQ-BC01-9/16-18UNF Pressure Sensor offers Compound pressure type, -100.0 to 100.0kPa pressure range, 12-24VDC power supply, Cable type(cable type cable: 3m) connection type , 9/16-18UNF pressure port. Manufactured by Autonics under the Autonics Pressure Sensor category, this model belongs to the Autonics PSQ Series.
| Brand | Autonics |
| Product Type | Pressure Sensor |
| Model Number | PSQ-BC01-9/16-18UNF |
Autonics PSQ-BC01-9/16-18UNF Pressure Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Applicable fluid | (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L |
| Pressure type | Compound pressure |
| Rated pressure range | -100.0 to 100.0kPa |
| Protection structure | IP65 |
| Pressure port | 9/16-18UNF |
| Power supply | 12-24VDC |
| Current consumption | Max. 50mA |
| Pressure port direction | Rear fitting |
| Connection type | Cable type(cable type cable: 3m) |
| Display pressure unit | MPa, kPa, kgf/cm², bar, psi, mmHg, inHg, mmH₂O |
| Control output_Hysteresis | Min. display interval |
| Control output_Repeat error | ±0.2% F.S. ±Min. display interval |
| Control output_Response time | Select one: 2.5ms, 5ms, 10ms, 25ms, 50ms, 100ms, 250ms, 500ms, 1,000ms, 5,000ms |
| Control output | Select one at parameter settingNPN open collector outputPNP open collector output |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 30 to 80% RH, storage: 30 to 80% RH |
| Material | Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: Stainless steel 316L |
| Weight | Approx.210g(approx. 125g) |
Send Your Inquiry for Dual Display Pressure Sensor PSQ-BC01-9/16-18UNF with cost-effective solutions. Essential Technical Specs of PSQ-BC01-9/16-18UNF are (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L. These sensors handle Compound pressure within a rated range of -100.0 to 100.0kPa, ensuring precise and reliable performance. Featuring an IP65 protection structure and an 9/16-18UNF pressure port, they are engineered for durability and ease of use. Operating with a power supply of 12-24VDC , the sensors provide Connection type Cable type(cable type cable: 3m) for seamless integration into your system. Suitable for environments with ambient temperatures ranging from -10 to 50℃, storage: -20 to 60℃ and ambient humidity levels of 30 to 80% RH, storage: 30 to 80% RH, these sensors maintain functionality without freezing or condensation. Capture the Best Deal with a Quote for your requirement of Dual Display Pressure Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
