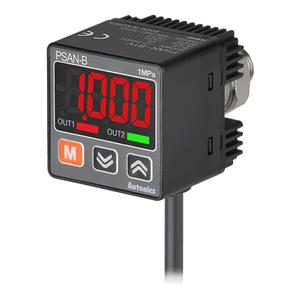

Autonics PSAN-BC01PH-9/16-18UNF Pressure Sensor
The Autonics PSAN-BC01PH-9/16-18UNF Pressure Sensor offers Compound pressure type, -101.3 to 100.0kPa pressure range, 12-24VDC power supply, Cable type(cable type cable: 3m) connection type , 9/16-18UNF pressure port. Manufactured by Autonics under the Autonics Pressure Sensor category, this model belongs to the Autonics PSAN Series.
| Brand | Autonics |
| Product Type | Pressure Sensor |
| Model Number | PSAN-BC01PH-9/16-18UNF |
Autonics PSAN-BC01PH-9/16-18UNF Pressure Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Applicable fluid | (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L |
| Pressure type | Compound pressure |
| Rated pressure range | -101.3 to 100.0kPa |
| Protection structure | IP65 |
| Pressure port | 9/16-18UNF |
| Power supply | 12-24VDC |
| Current consumption | Voltage output type: Max. 50mACurrent output type: Max. 75mA |
| Pressure port direction | Rear fitting |
| Connection type | Cable type(cable type cable: 3m) |
| Display pressure unit | kPa, kgf/cmยฒ, bar, psi, mmHg, inHg, mmHโO |
| Option input/output | Hold/Auto shift input |
| Control output_Hysteresis | Min. display interval |
| Control output_Repeat error | ยฑ0.2% F.S. ยฑMin. display interval |
| Control output_Response time | Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms |
| Control output | PNP open collector |
| Environment_Ambient temperature | -10 to 50โ, storage: -20 to 60โ |
| Environment_Ambient humidity | 30 to 80% RH, storage: 30 to 80% RH |
| Material | Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L |
| Weight | Approx. 167g(approx. 90g) |
Mail Us for your needs in Display Type Pressure Sensor PSAN-BC01PH-9/16-18UNF with budget-friendly prices. The Main Technical Parameters of PSAN-BC01PH-9/16-18UNF include (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L. These sensors handle Compound pressure within a rated range of -101.3 to 100.0kPa, ensuring precise and reliable performance. Featuring an IP65 protection structure and an 9/16-18UNF pressure port, they are engineered for durability and ease of use. Operating with a power supply of 12-24VDC , the sensors provide Connection type Cable type(cable type cable: 3m) for seamless integration into your system. Suitable for environments with ambient temperatures ranging from -10 to 50โ, storage: -20 to 60โ and ambient humidity levels of 30 to 80% RH, storage: 30 to 80% RH, these sensors maintain functionality without freezing or condensation. Customize Your Experience with a Quote for your requirement of Display Type Pressure Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
