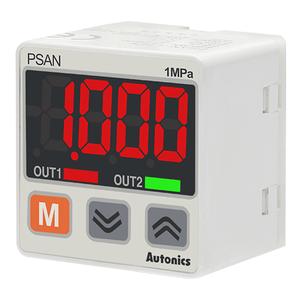

Autonics PSAN-1CV-RC1/8 Pressure Sensor
The Autonics PSAN-1CV-RC1/8 Pressure Sensor offers Standard pressure type, 0 to 1,000kPa pressure range, 12-24VDC power supply, Connector type(connector type cable: 2m) connection type , Rc1/8 pressure port. Manufactured by Autonics under the Autonics Pressure Sensor category, this model belongs to the Autonics PSAN Series.
| Brand | Autonics |
| Product Type | Pressure Sensor |
| Model Number | PSAN-1CV-RC1/8 |
Autonics PSAN-1CV-RC1/8 Pressure Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Applicable fluid | (Pneumatic type) Air, Non-corrosive gas |
| Pressure type | Standard pressure |
| Rated pressure range | 0 to 1,000kPa |
| Protection structure | IP40 |
| Pressure port | Rc1/8 |
| Power supply | 12-24VDC |
| Current consumption | Voltage output type: Max. 50mACurrent output type: Max. 75mA |
| Pressure port direction | Rear fitting |
| Connection type | Connector type(connector type cable: 2m) |
| Display pressure unit | MPa, kPa, kgf/cm², bar, psi |
| Option input/output | Voltage(1-5VDC @(=)) output |
| Control output_Hysteresis | Min. display interval |
| Control output_Repeat error | ±0.2% F.S. ±Min. display interval |
| Control output_Response time | Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms |
| Control output | NPN open collector |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 30 to 80% RH, storage: 30 to 80% RH |
| Material | Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass |
| Weight | Approx. 165g(approx. 80g) |
Send Your Inquiry for Digital Display Pressure Sensors PSAN-1CV-RC1/8 with cost-effective solutions. Essential Technical Specs of PSAN-1CV-RC1/8 are (Pneumatic type) Air, Non-corrosive gas. These sensors handle Standard pressure within a rated range of 0 to 1,000kPa, ensuring precise and reliable performance. Featuring an IP40 protection structure and an Rc1/8 pressure port, they are engineered for durability and ease of use. Operating with a power supply of 12-24VDC , the sensors provide Connection type Connector type(connector type cable: 2m) for seamless integration into your system. Suitable for environments with ambient temperatures ranging from -10 to 50℃, storage: -20 to 60℃ and ambient humidity levels of 30 to 80% RH, storage: 30 to 80% RH, these sensors maintain functionality without freezing or condensation. Capture the Best Deal with a Quote for your requirement of Digital Display Pressure Sensors. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
