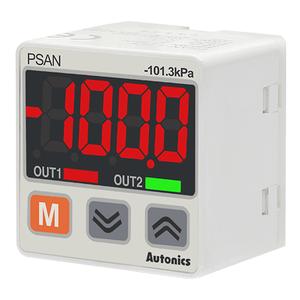

Autonics PSAN-01CV-R1/8 Pressure Sensor
The Autonics PSAN-01CV-R1/8 Pressure Sensor offers Standard pressure type, 0.0 to 100.0kPa pressure range, 12-24VDC power supply, Connector type(connector type cable: 2m) connection type , R1/8 pressure port. Manufactured by Autonics under the Autonics Pressure Sensor category, this model belongs to the Autonics PSAN Series.
| Brand | Autonics |
| Product Type | Pressure Sensor |
| Model Number | PSAN-01CV-R1/8 |
Autonics PSAN-01CV-R1/8 Pressure Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Applicable fluid | (Pneumatic type) Air, Non-corrosive gas |
| Pressure type | Standard pressure |
| Rated pressure range | 0.0 to 100.0kPa |
| Protection structure | IP40 |
| Pressure port | R1/8 |
| Power supply | 12-24VDC |
| Current consumption | Voltage output type: Max. 50mACurrent output type: Max. 75mA |
| Pressure port direction | Rear fitting |
| Connection type | Connector type(connector type cable: 2m) |
| Display pressure unit | MPa, kPa, kgf/cmΒ², bar, psi |
| Option input/output | Voltage(1-5VDC @(=)) output |
| Control output_Hysteresis | Min. display interval |
| Control output_Repeat error | Β±0.2% F.S. Β±Min. display interval |
| Control output_Response time | Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms |
| Control output | NPN open collector |
| Environment_Ambient temperature | -10 to 50β, storage: -20 to 60β |
| Environment_Ambient humidity | 30 to 80% RH, storage: 30 to 80% RH |
| Material | Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass |
| Weight | Approx. 165g(approx. 80g) |
Please speak to our Technical Engineer for Digital Display Pressure Sensors PSAN-01CV-R1/8 at attractive prices. Technical Specs Summary of PSAN-01CV-R1/8 includes (Pneumatic type) Air, Non-corrosive gas. These sensors handle Standard pressure within a rated range of 0.0 to 100.0kPa, ensuring precise and reliable performance. Featuring an IP40 protection structure and an R1/8 pressure port, they are engineered for durability and ease of use. Operating with a power supply of 12-24VDC , the sensors provide Connection type Connector type(connector type cable: 2m) for seamless integration into your system. Suitable for environments with ambient temperatures ranging from -10 to 50β, storage: -20 to 60β and ambient humidity levels of 30 to 80% RH, storage: 30 to 80% RH, these sensors maintain functionality without freezing or condensation. Match Your Needs with a Quote for your requirement of Digital Display Pressure Sensors. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
