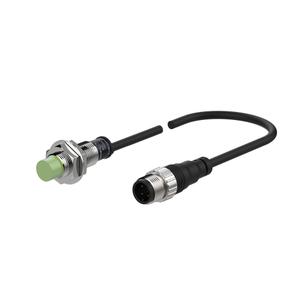

Autonics PRWT12-4DO Proximity Sensor
The Autonics PRWT12-4DO Proximity Sensor offers 4mm sensing distance, Normally Open output, Non-flush, M12, Standard type, 500Hz Response frequency. Manufactured by Autonics under the Autonics Proximity Sensors category, this model belongs to the Autonics PR Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PRWT12-4DO |
Autonics PRWT12-4DO Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M12 |
| Sensing distance | 4mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 12Γ12Γ1mm(iron) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Open |
| Wire type and power | DC 2-wire type 12-24VDC @(=) |
| Installation | Non-flush |
| Cable Standard/material | Standard connector |
| Body length | Standard type |
| Residual voltage | Max. 3.5V |
| Environment_Ambient temperature | -25 to 70β, storage: -30 to 80β |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Γ 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 500Hz |
| Weight | Approx. 54g(approx. 42g) |
Please speak to our Technical Engineer for Cylindrical Inductive Proximity Sensors PRWT12-4DO at attractive prices. Technical Specs Summary of PRWT12-4DO includes the key specifications include a sensing distance of 4mm designed for a standard target of 12Γ12Γ1mm(iron). This sensor features a Current specification of Leakage current: Max. 0.6mA and a control output with Normally Open configurations. It operates on a Wire type and power DC 2-wire type 12-24VDC @(=). Its sensing side size guarantees precise detection, even in challenging environments. The sensor operates efficiently within ambient temperatures of -25 to 70β, storage: -30 to 80β and can be stored at temperatures ranging. A response frequency of 500Hz ensures quick and accurate performance. Match Your Needs with a Quote for your requirement of Cylindrical Inductive Proximity Sensors. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
